Understanding the Basics:
How Does Robotic Welding Work?
Automated Robotic Welding Services
Automated robotic welding services have significantly transformed the manufacturing industry, offering enhanced precision, efficiency, and consistency. Robotic arc welding is a highly efficient and precise method of joining metal components. It provides numerous benefits, such as increased productivity, improved weld quality, and cost savings.
This guide details each step in the robotic welding process, from programming the robot and preparing the workpiece to initiating the arc, controlling the motion, and conducting quality inspections. Understanding and implementing these steps can maximize the benefits and importance of automated robotic welding services in your manufacturing operations.
Welding Robot Capabilities
Alliance Fabrication and Manufacturing has multi-cells with Fanuc Arc Mate Robots and Fronius TPSi 500 power supplies equipped with CMT, dual workstations having H-type positioners (rotary axis) that allow the production of complex weldments in a variety of sizes, an Amada ID40IV HPNT Press Type Spot Welder, and a Bluco Table with a Fixture System.
Our multiple Fanuc Arc Mate robots are high-speed units capable of welding large parts and are programmed offline.
Other capabilities and capacities:
- Flexibility – with six-axis
- Realistic and repeatable welds
- High productivity
The H-type positioner is reliable, rigid, and has three rotational axes, providing a highly flexible structure. It is an efficient robotic welding solution with high production cycles in manufacturing spaces. The H-type positioner plays an important role in maintaining the ideal welding angles and positions of the process, ensuring precision and quality in each weld.
The Robotic Welding Process
1. Programming The Robotic Welding Equipment
The first step involves carefully planning the weld sequence to manage heat dissipation and control the thermal movement of the components. Once the welding sequence plan has been created, it is digitized by importing the solid model of the part and welding fixture. The programming path is then applied based on the welding sequence, and any part or fixture collisions are addressed as needed. After the programming has been applied and all collision avoidance issues are addressed, our fixture design becomes finalized. The tooling can then be built based on the successful completion of the welding simulation.
Arc welding parameters are developed specifically for each application and stored as jobs in the power source. The welding jobs are incorporated into the tool path instructions during the programming process. Each weld segment has the appropriate welding job linked to it.
Benefits:
- Increased precision and repeatability
- Reduced welding defects
- Improved deposition rates
- Verification of fixturing viability
- Optimal thermal input
2. Robotic Welding Equipment Preparation
Before initiating the welding process, it is crucial to prepare the workpiece properly. This involves cleaning the metal surfaces to remove any dirt, oil, or rust that could negatively impact the quality of the weld. Additionally, the workpiece must be securely positioned in the welding fixture to ensure stability during welding.
Benefits:
- Optimized joint fit-up
- Ideal joint penetration
- Reduced welding defects
3. Robotic Arc Initiation
Once the robotic welding equipment is programmed and the workpiece is prepared, the next step is to initiate the arc. This is achieved by bringing the welding torch close to the workpiece and initiating the arc start sequence. There is a gas flow of inert gas to protect the arc ignition, with the actual arc ignition starting about .2s after the gas flow. The arc ignition generates intense amperage to join base and filler metal together, thus mechanically joining the pieces together. The arc continues as the robot guides the torch to its end destination, where arc end sequence slowly stops the wire feeding, taking care to fill the crater in and then giving it an additional .3s of gas after the arc extinguishes to allow the crater to cool with getting any contamination in the weld pools.
Benefits:
- Quick and efficient start of the welding process
- Clean starts and stops with adequate crater fill to prevent cracking
- Minimal distortion of the workpiece
4. Controlled Motion
The robot carefully controls its motion during the robotic welding process to follow the programmed weld path. This is achieved by utilizing various types of robotic motion, such as linear, circular, or oscillating movements. The robot's ability to control its motion accurately ensures consistent, high-quality welds.
Benefits:
- Improved weld accuracy and repeatability
- Reduced operator fatigue
- Increased welding speed
5. Monitoring and Adjustments
The intelligent robotic arc welding systems constantly monitor, measure, and correct the arc voltage and amperage as it moves. It makes corrections to the weld pool in real time to ensure optimal droplet detachment, which provides optimal wire deposition rates and faster travel speeds.
6. Quality Inspection
Alliance Fabrication and Manufacturing partners with some of the most reputable suppliers, making quality & customer service paramount. We believe that quality parts are a competitive advantage.
Quality assurance, or QA, is a detail-oriented process of checks and balances used in the fabrication and manufacturing space to ensure that the customer receives the highest quality parts and components.
Benefits:
- Enhanced weld integrity and strength
- Early detection of welding defects
- Compliance with industry standards and regulations

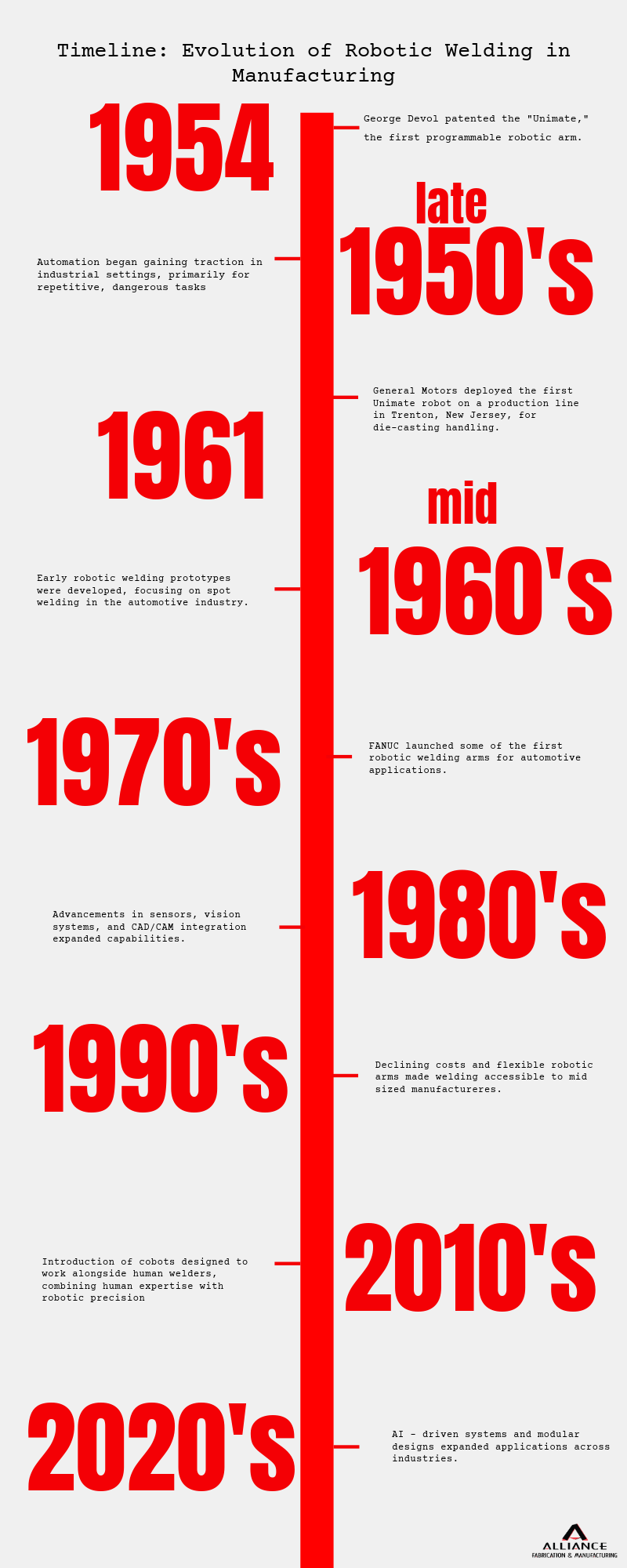

Why Robotic Welding is the Future of Manufacturing:
Robotic welding is transforming the landscape of modern fabrication and manufacturing, setting new standards for precision, efficiency, and consistency.
As precision, speed, and efficiency continue to demand increasingly, robotic welding becomes a critical technology that shapes the future of manufacturing. Automation brings benefits unmatched by traditional methods, where precision and consistency are assured through identical welds with few errors and less rework.
That level of accuracy becomes indispensable in industries like automotive, aerospace, and even construction, where performance and safety largely depend on high standards. Robotic systems also increase productivity: They always strive to ensure that high-volume production is done quickly and meets tight deadlines.
Further, the systems help with workplace safety as they carry out hazardous tasks and thus protect workers from extreme heat, UV radiation, and toxic fumes. With their state-of-the-art sensors and AI-driven technologies, today's robots can quickly adapt to material variations and complex geometries, offering unparalleled flexibility. While the up-front capitalization of robotic welding systems can be pricey, over time, the reduction of waste materials, increased productivity, and lower defect rates make them a game-changing solution in manufacturing.
Robotic Welding Services at Alliance Fabrication & Manufacturing
Robotic welding, with its precise control, repeatability, and efficiency, has revolutionized the manufacturing industry, producing high-quality welded components faster and more consistently than traditional welding methods. Alliance Fabrication & Manufacturing offers various intelligent fabrication and manufacturing services to many industries and sectors.
Integrating state-of-the-art software and technology, years of experience, and industry knowledge, backed by data-driven results and dedicated staff, Alliance Fabrication & Manufacturing provides product performance and repeatability.
Not sure which process fits your part? Read our guide to manual MIG welding versus robotic welding.
